      Creating a widget (number)



      Step-by-step instructions

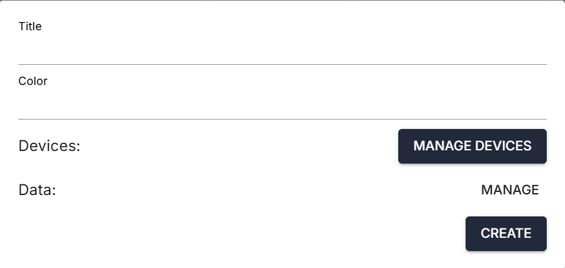

      1. Set title

      • Step 1: Open the "Dashboards" tab and navigate to the desired dashboard.
      • Step 2: Click on "Add element" and select "Number" from the available widget types.
      • Step 3: Give the widget a meaningful title that will be displayed in the top left corner of the widget.

      Daschboard_erstellen7_2021-06-15 115849

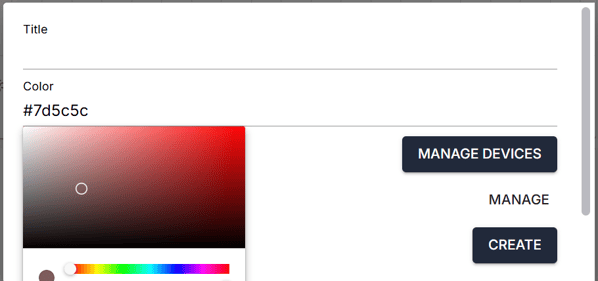

      2. Select the color of the number

      • Step 1: Click on the color palette and select the desired color in which the number should be displayed.
      • Step 2: Confirm your selection to complete the color configuration.

      Daschboard_erstellen8_2021-06-15 115849

      3. Configure data

      3.1 Analysis data

      If the widget is to display analysis data:

      • Step 1: Select "Analysis data" in the configuration menu.
      • Step 2: Define the analysis type (e.g. average, trend).
      • Step 3: Determine the time period to be analyzed.
      • Step 4: Set the interval at which the data is to be updated.

      02.02_Daschboard_Analyse_erstellen

      3.2 Measured values

      If the widget is to display measured values:

      • Step 1: Select "Measured values" in the configuration menu.
      • Step 2: Determine the specific measured value (e.g. current power).
      • Step 3: Define the time period that the widget should cover.
      • Step 4: Set the aggregation (e.g. MAX, MIN, SUM, AVG, LAST, FIRST, COUNT) how the data should be displayed cumulatively.

      Daschboard_erstellen9.3_2021-06-15 115849

      4. Define components

      • Step 1: Select the components whose data is to be displayed in the widget.
      • Step 2: Use the filter options to search for specific devices:
        • A: Device name
        • B: Associated system
        • C: Device type
      • Step 3: Select the desired devices in the list D.
      • Step 4: Add the selected devices to list E.
      • Step 5: You can remove devices from the selection via area F.

      Daschboard_erstellen9.8.2_2021-06-15 115849

      5. Adjust size and position

      • A - Here is the title you have defined

      • B - The configured number in the specified color
      • Step 1: In the bottom right-hand corner of the widget there is an arrow symbol C, which you can use to adjust the size of the widget.
      • Step 2: Move the mouse pointer over this corner and a pencil icon D appears, which you can use to make further adjustments to the widget.

      Daschboard_erstellen9.91_2021-06-15 115849

      Below each aggregation (cumulation)

      • MAX: Displays the maximum value achieved within the specified period.
      • MIN: Shows the minimum value achieved within the specified time period.
      • SUM: Calculates the sum of all values in the specified period.
      • AVG: Calculates the average value in the specified period.
      • LAST: Displays the last (most recent) value in the specified period.
      • FIRST: Displays the first value in the specified time period.
      • COUNT: Counts the number of transmitted values.

      Example for "COUNT": If a device transmits a value every 15 minutes (4 times per hour), the "COUNT" value for this device will be 96 for a period of one day.
