Before you begin configuration, make sure you have thoroughly read and reviewed the following knowledge base pages:
The Dongle
The dongle is a small device, about the size of a USB Wi-Fi stick, that is connected to the inverter to allow for wireless configuration.
Important: The dongle must not remain connected during normal operation!
Special Considerations for Huawei Inverters
-
Bus Address:
Some Huawei inverters have issues when using bus address 1. Therefore, if no data is being transmitted, start directly with bus address 2 or higher.
-
RS485 Terminal Block:
Make sure to use the RS485_1 terminal block.
-
Stop Bits:
In Huawei systems, stop bits are referred to as bus frames.
Example Setup for RS485 Communication
Inverter Settings:
- Inverter 1 → Bus Address 1 → RS485_1
- Baud Rate: 9,600
- Protocol: Modbus Slave
- Parity: None → 8N1 (8 data bits, no parity, 1 stop bit)

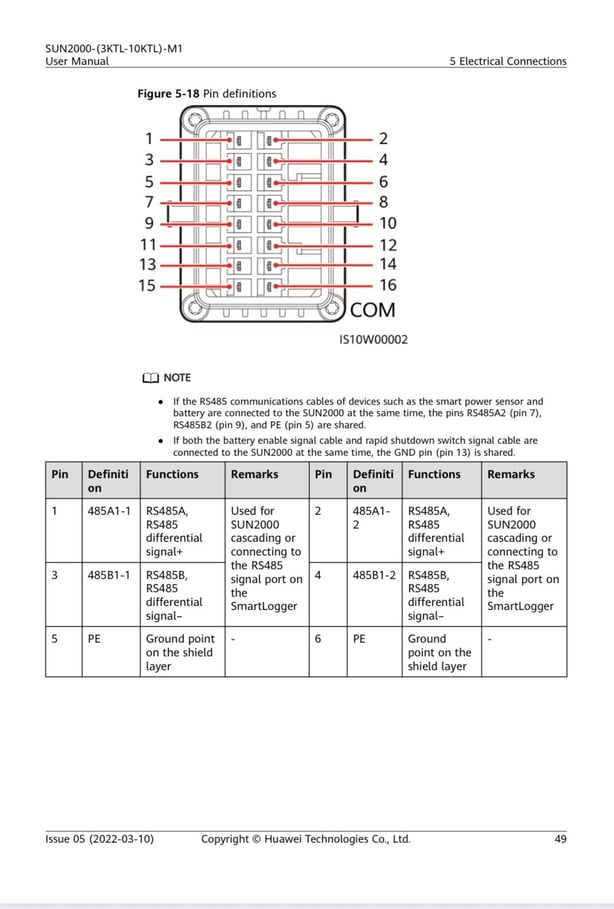

RS485 Wiring:
- Pin 1 (RS485A IN): Green → Logger RS485-1 A
- Pin 3 (RS485B IN): White (from green cable) → Logger RS485-1 B
Additional Resources:
